UL1589
Fongming
80C 30V UL1589PTFE绝缘导线
产品性能
额定温度：80℃
额定电压：30V
阻燃性能：水平燃烧/FT2/VW-1/FT1

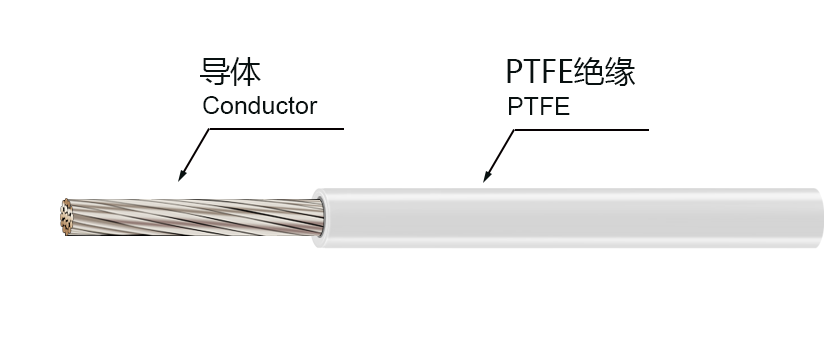

产品结构
导体：实心或绞合，无规定
绝缘：PTFE
颜色：客户需求
执行标准/环保
UL758,UL1581,ROHS,REACH
UL | 1354 | 1589 | |
CSA/CUL | AWM I A | AWM I A | |
额定温度 | 60/80℃ | 80℃ | |
额定电压 | 30V | 30V | |
规格 | 导体结构 | 绝缘厚度 (mm) | 绝缘厚度 (mm) |
50 | 1/0.0251 | / | 0.051~2.54 |
48 | 1/0.0315 | / | |
46 | 1/0.0399 | / | |
44 | 1/0.051 | 0.051~3.18 | |
42 | 1/0.064 | ||
40 | 1/0.079 | ||
38 | 1/0.102 | ||
36 | 7/0.05 | ||
34 | 7/0.06 | ||
32 | 7/0.08 | ||
30 | 7/0.1 | ||
28 | 7/0.127 | ||
26 | 7/0.16 | ||
24 | 7/0.2 | ||
22 | 7/0.254 | ||
20 | 7/0.32 | ||
18 | 7/0.39 | ||
16 | 19/0.3 | ||
14 | 19/0.37 | ||
12 | 19/0.48 | ||
10 | 37/0.43 | ||
8 | 57/0.43 | ||
6 | 67/0.5 | ||
4 | 106/0.5 | ||
2 | 168/0.5 | ||
1 | 212/0.5 | ||
1/0 | 268/0.5 | ||
2/0 | 342/0.5 | ||
3/0 | 430/0.5 | ||
4/0 | 538/0.5 | ||
