UL1684
Fongming
105 30V UL1684 PTFE绕包导线
产品性能
额定温度：105
额定电压：30V
阻燃性能：水平燃烧/VW-1/FT2/FT1

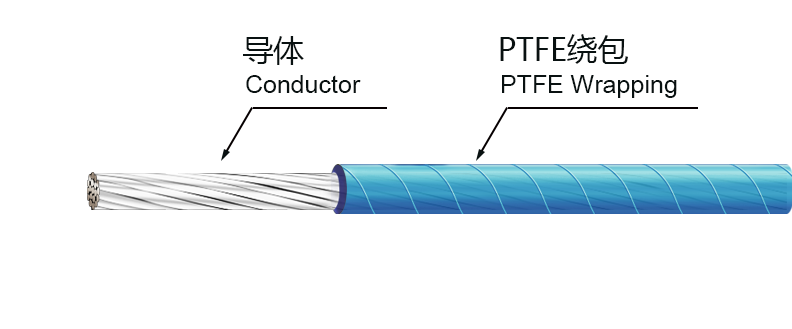

产品结构
导体：实心或绞合，镀镍丝，纯镍丝
绝缘：PTFE绕包
颜色：客户需求
执行标准/环保
UL758,UL1581,ROHS,REACH
UL | 1684 | 5225 | |||
CSA/CUL | AWM I A | AWM I A | |||
额定温度 | 105℃ | 150℃ | |||
额定电压 | 30V | 600V | |||
规格 | 导体结构 | 绝缘厚度 (mm) | 外径 (mm) | 绝缘厚度 (mm | 外径 (mm) |
32 | 7/0.08 | 0.31 | 1.0±0.1 | / | |
30 | 7/0.1 | 1.0±0.1 | 0.51 | 1.4±0.1 | |
28 | 7/0.127 | 1.1±0.1 | 1.5±0.1 | ||
26 | 7/0.16 | 1.2±0.1 | 1.6±0.1 | ||
24 | 7/0.2 | 1.3±0.1 | 1.7±0.1 | ||
22 | 7/0.254 | 1.5±0.1 | 1.9±0.1 | ||
20 | 10/0.254 | 1.7±0.1 | 2.1±0.1 | ||
18 | 16/0.254 | 1.9±0.1 | 2.3±0.1 | ||
16 | 26/0.254 | 2.3±0.1 | 2.6±0.1 | ||
14 | 41/0.254 | 2.6±0.2 | 3.0±0.2 | ||
12 | 65/0.254 | 3.1±0.2 | 3.5±0.2 | ||
10 | 103/0.254 | 4.0±0.2 | 4.4±0.2 | ||
8 | 0.76 | 5.8±0.3 | |||
6 | 6.8±0.3 | ||||
4 | 8.2±0.5 | ||||
2 | 9.8±0.5 | ||||
1 | 1.14 | 11.6±0.5 | |||
1/0 | 12.8±0.5 | ||||
2/0 | 14.1±0.5 | ||||
3/0 | 15.5±0.5 | ||||
4/0 | 17.1±0.5 | ||||
